Aarvex H81 Motherboard
Aarvex H81 Motherboard

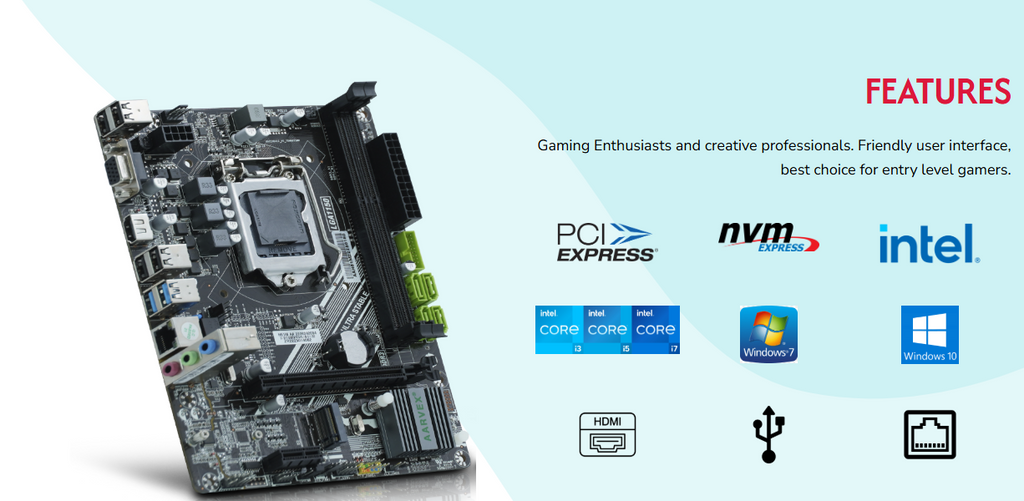

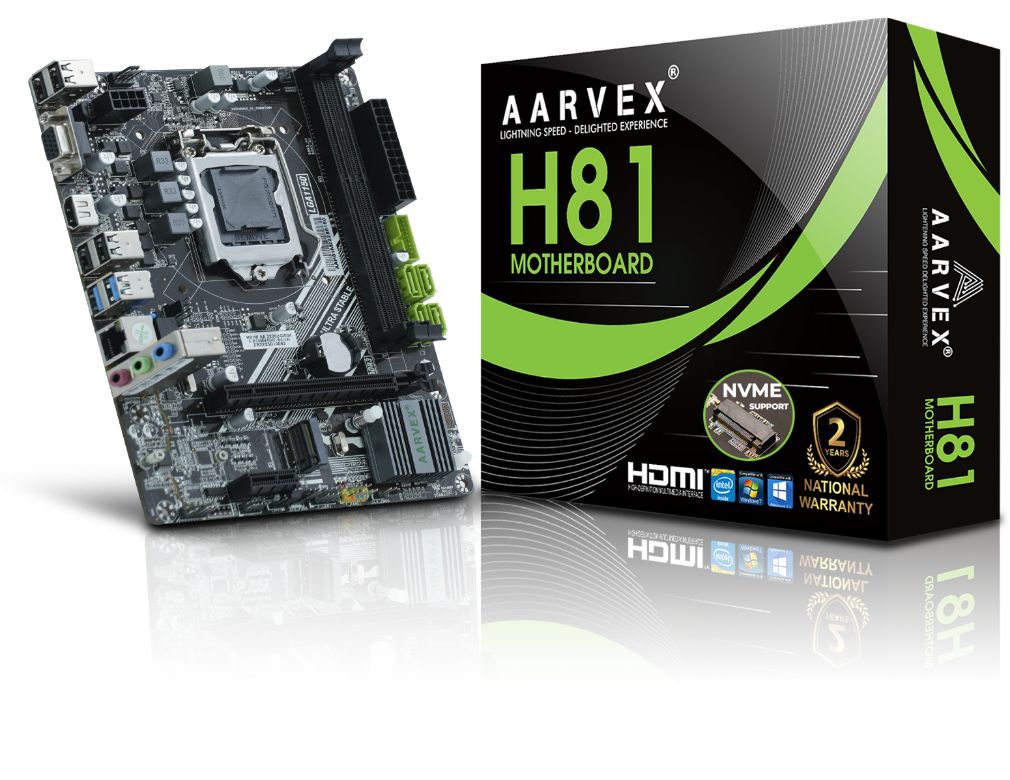

The Aarvex H81 Motherboard delivers reliable performance for budget-conscious builders and businesses. Built on the Intel H81 chipset, it supports 4th generation Intel processors (Core i7/i5/i3, Pentium, Celeron) in Socket 1150, making it ideal for office systems and light workloads.
This Micro-ATX board (213 x 170mm) features DDR3 memory support up to 16GB, M.2 NVMe slot for modern storage, and 4 SATA ports for expansibility. Connectivity includes Realtek 1Gbps LAN, 6-channel audio, VGA and HDMI video outputs, plus 2 USB 3.0 and 4 USB 2.0 rear ports.
Expansion options comprise 1 PCI Express x16 slot and 1 x1 slot. The compact form factor fits standard cases while delivering the stability and features needed for everyday computing and enterprise applications.
Specification
|
NVMe Slot
|
Support M.2 NVMe Slot (Key M) 2280
|
|
PROCESSOR SUPPORT
|
Support Intel Socket 1150 for 4th Gen.
Core i7/i5/i3/Pentium/Celeron |
|
CHIPSET
|
Intel H81 Chipset
|
|
MEMORY SUPPORT
|
DDR3 1600/1333 SDRAM, Max 16GB
|
|
LAN
|
Realtek chip, 1 x 100M (Optional 100M)
|
|
AUDIO
|
Realtek chip, ALC 6-channel audio
|
|
SATA
|
4 x SATA 6Gb/s ports
|
|
BACK PANEL
|
1 VGA port, 2 USB 3.0 ports, 4 USB 2.0 ports
1 LAN port, 1 HDMI port, 3 flexible audio jacks |
|
CONNECTORS
|
1 USB 3.0 pin header
|
|
SLOTS
|
1 PCI Express x16 Slot
1 PCI Express x1 Slot |
|
FORM FACTOR
|
Micro-ATX (21.5cm x 17cm)
|
|
DIMENSIONS
|
213 x 170mm
|
